OEM LSZH FTTH Drop Fiber Optic Cable 1 Core G625D G657A1 G657A2

Name: OEM LSZH FTTH Drop Fiber Optic Cable 1 Core G625D G657A1 G657A2
Brand: Huayixin or OEM
Price: 1 USD

Buy cheap OEM LSZH FTTH Drop Fiber Optic Cable 1 Core G625D G657A1 G657A2 product

Brand Name : Huayixin or OEM

Model Number : GJXH

Certification : CE/Rosh/ISO9001

Place of Origin : China

MOQ : Customized

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000KM per month

Delivery Time : 15 workigng days and depends on quantity

Packaging Details : Wooden drum

Application : Fiber telecommunication

Fiber type : Single mode

Fiber cores : 1-4 core

Fiber : G652D/G657A1/G657A2

Steel wire : Steel wire or FRP

OEM : Support

Shipping method : Usually by sea

Warranty : 10 years

Contact Now

drop cable 1 core G625D G657A1 G657A2 LSZH Low smoke jacket optical fiber cable drop cable

Description:

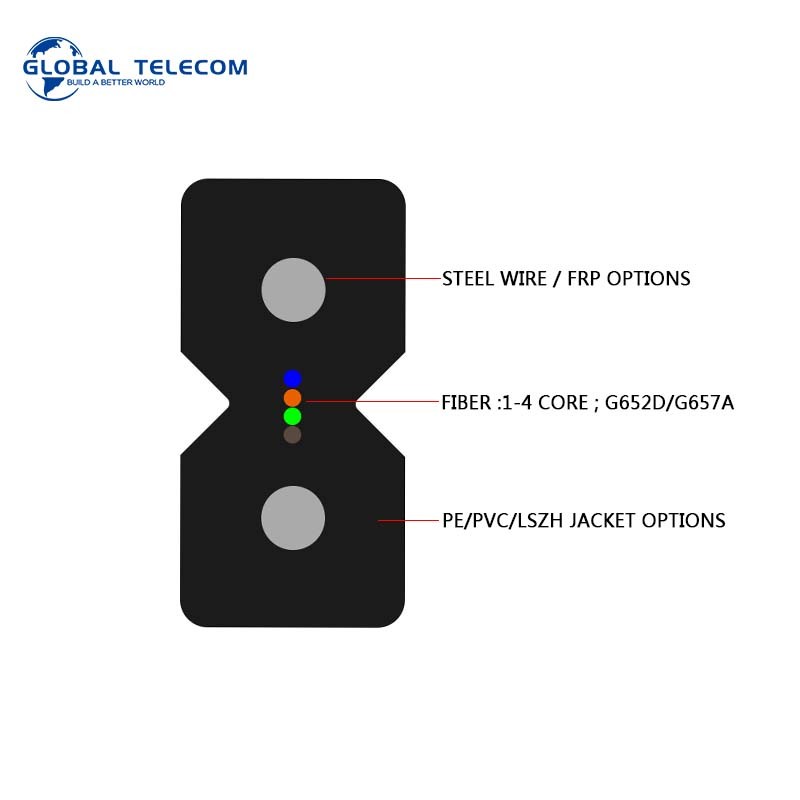

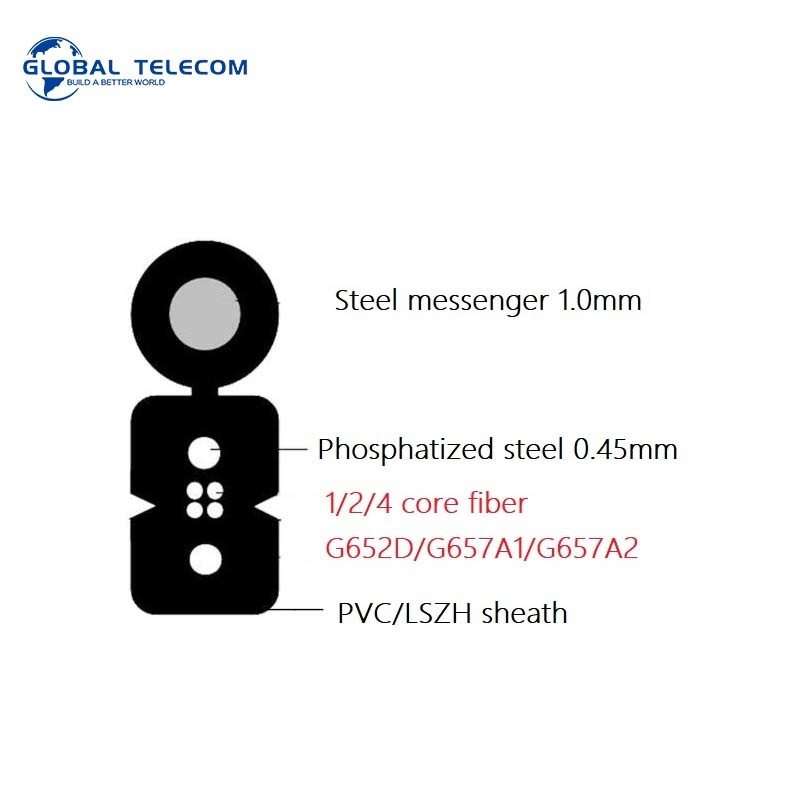

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) or steel wires are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black LSZH sheath.

Optical Characteristics:

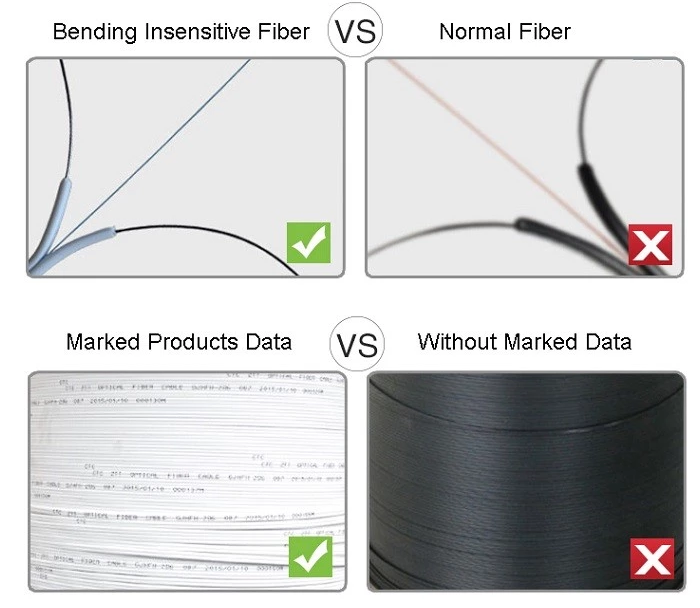

1.Special low-bend-sensitivity fiber provides high bandwidth and excellent

communication transmission property;

2.Simple structure, light weight and high practicability;

3.Novel flute design, easily strip and splice, simplify the installation and maintenance;

4.Low smoke, zero halogen and flame retardant sheath.

Cable code	Fiber Count	Cable diameter mm	Cable weight Kg/km	Tensilse Strength Long/Short term N	Crush Resistance Long/Short term N	Bedning Radius Dynamic/Static mm
GJXFH-1	1	(2.0±0.2)×(3.0±0.2)	8	30/60	300/1000	15/30
GJXFH-2	2	(2.0±0.2)×(3.0±0.2)	8.5	30/60	300/1000	15/30
GJXFH-4	4	(2.0±0.2)×(3.0±0.2)	10	30/60	300/1000	15/30
GJXH-1	1	(2.0±0.2)×(3.0±0.2)	9	30/60	300/1000	15/30
GJXH-2	2	(2.0±0.2)×(3.0±0.2)	9.5	30/60	300/1000	15/30
GJXH-4	4	(2.0±0.2)×(3.0±0.2)	10	30/60	300/1000	15/30

GJXH ftth

OEM LSZH FTTH Drop Fiber Optic Cable 1 Core G625D G657A1 G657A2
