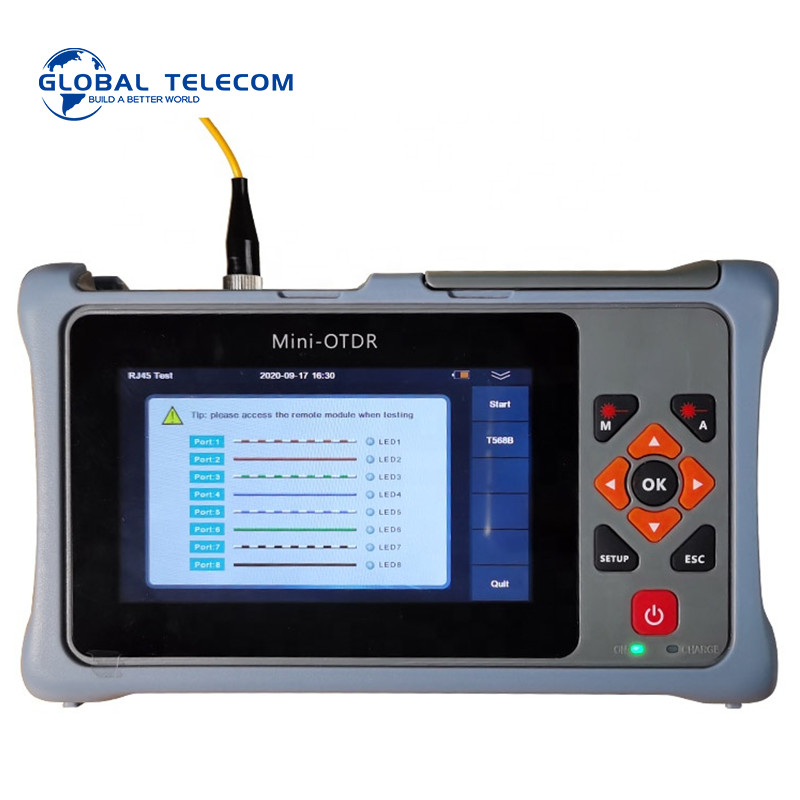

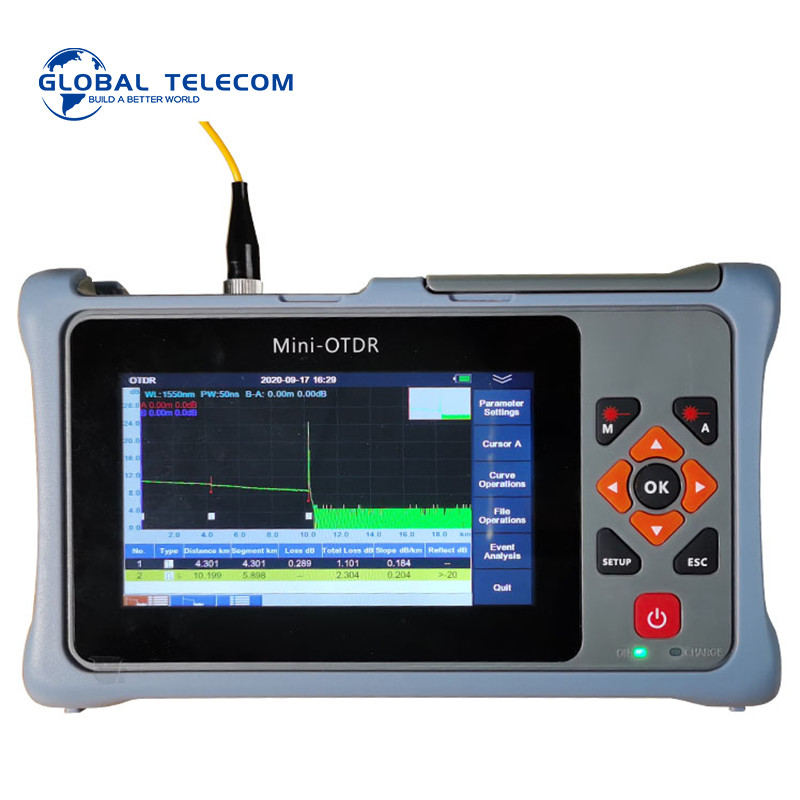

mini 60km OTDR Testing Machine , 10W Fiber OTDR Testing Equipment

  • 1
  • 2

Brand Name : Global Telecom

Model Number : GT4000D

Certification : CE/ROSH/IOS9001

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500sets

Delivery Time : 5-8 work days

Packaging Details : stander packing

Type : otdr, OTDR tester

No. of Fiber : 1.

Power Input : 10W

Max Capacity : 4200mAh

Dynamic Range : 24/22dB

Wavelength : 1310nm/1550nm

Connector Type : SC/FC/ST

VFL output power : ≥10mW

Operating temperature : -20~ +60℃

Language : Multi-language

Contact Now

FTTH mini 60km fiber optic otdr machine
GT4000D fiber optic tester otdr price
Optical time domain reflectometer is a new generation of portable and intelligent measuring instrument designed by AVES Communication Technology for testing optical fiber communication system. button/ touch dual operation; Internal integration of eight major functional modules, multi-functional integration to help customers effectively solve the field test and maintenance; can penetrate optical splitter, effective PON network testing; Intelligent power-saving management, 20 hours long standby, efficient protection of test dimension Continuous.
mini 60km OTDR Testing Machine , 10W Fiber OTDR Testing Equipmentmini 60km OTDR Testing Machine , 10W Fiber OTDR Testing Equipment



Applications:

It is mainly used to measure the length, loss and connection quality of all kinds of optical fibers and cables, and can be widely used in engineering construction, line maintenance and testing, emergency repair, and the development and production of optical fibers and cables.

mini 60km OTDR Testing Machine , 10W Fiber OTDR Testing Equipmentmini 60km OTDR Testing Machine , 10W Fiber OTDR Testing Equipment
Festures:

1. 9-in-1 functions.
2. The 4.3-inch full-view capacitive touch-screen supports multi-touch.
3. Cover plate type tempered glass panel, don't worry about screen scratch.
4. Support horizontal version, vertical version, perfect fusion of the two habits of user operations.
5. Support charging treasure charging, do not worry about the battery is not enough.
6. In line with the international standards of test data with perfect simulation software, so that your report is more simple.
7. Sink type light port design, so that the instrument light port can get better protection.
8. Support pen-driver, SD card and Micro USB export data protection.
9. Any interface supports screen capture.

1. 3-inch capacitive touch screen with full viewing , TFT 800x480 resolution
2. Lithium battery: 5200mAh/ 3.7v, standby time > for 10 hours
3. Size: 175x105x45mm, weight: 560g (including battery)
4. Working temperature: -10~+55°C, storage temperature: -20~+80°C

mini 60km OTDR Testing Machine , 10W Fiber OTDR Testing Equipment

Distance range Up 100KM
Sampling resolution 0.2m minimum
Sampling point 64,000 points
Linearity =0.05dB/dB
Loss threshold 0.01dB
Loss resolution 0.001dB
Range resolution 0.01m
Distance accuracy +(0.5+testdistanceX3X 10+samplingesolution)edudingrefractiveinderor)
data storage More than 80,000 test curves
Red light source 10mW, CW/2Hz
Data interface 2 USB ports (Type AX 1, Micro usbX 1), SD card
monitor 4.3 inch TFT-LCD (standard capacitive touch screen)
battery 3.7V/5200mAh
temperature Working temperature: -10°C~+55°C, storage temperature: -20°C~ +80°C
humidity =95% (no condensation)
size 175X 105X 45mm .
weight 0.56kg (including battery)
Optical power meter Type A: -10dBm-~-70dBm, Type B: +26dBm~- 50dBm
Network cable test terminal Support network cable sequence test
