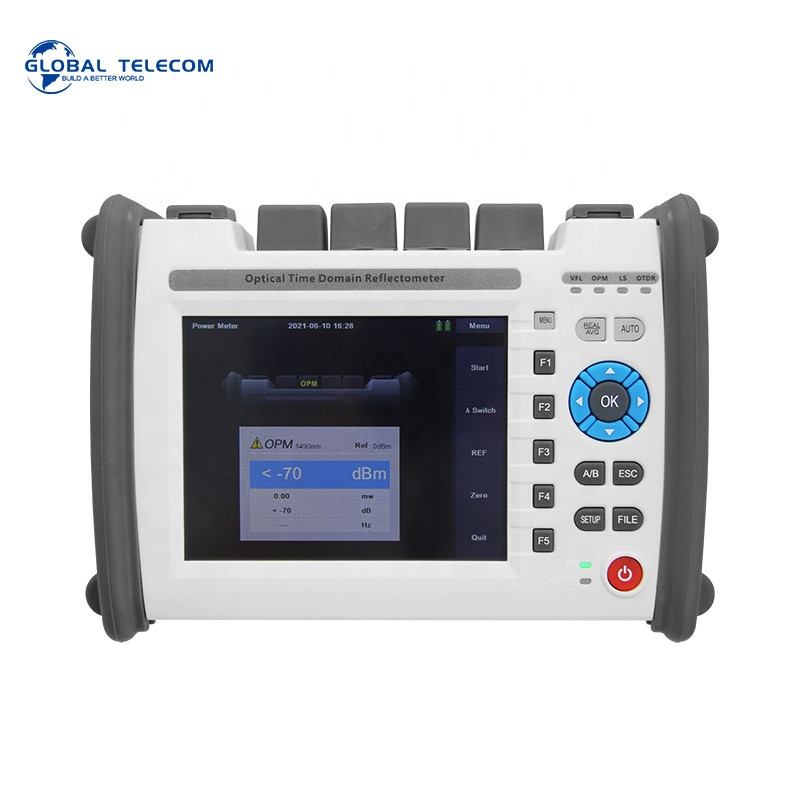

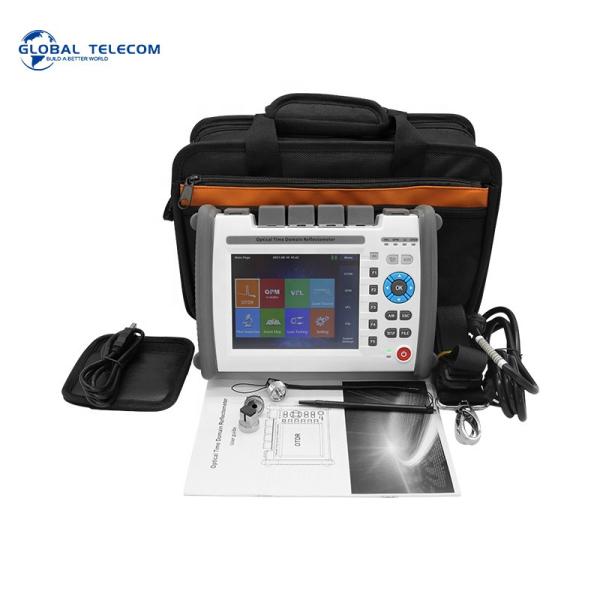

otdr tester GT6000 SM MM mode 850/1300/1310/1550/1625nm single mode and multi-modeotdr
This series of fiber optical comprehensive tester is a multifunctional optical measuring instrument, which
integrates OTDR, visual fault locator, optical power meter, light source, insertion loss tester, event map and other functions. It can load GPS module, WIFI module, IOT module, bluetooth module and other communication auxiliary functions. Set touch screen and button as one of the operability of a very simple, friendly instrument, is the construction of optical cable, engineering acceptance, and on-site repair and other effective assistant, whether used to import brand high-grade instrument, or not beginners, believe that the instrument is your most intimate choice.
| NO | Name | Description |
| I | Optical interface | VFL,Power meter,Light source,OTDR |
| II | Electrical
interface | Power port,MINI USB |
| III | Electrical
interface | USB2.0(Type A),SD card |
| IV | Indicator light | Indicates a functional module that is working |
| V | Keys | MENU ；F1~F5:Function keys；
REAL/AVG:Manual testing；
AUTO:Auto testing；
OK:Directional navigation key；
A/B:The cursor switching；
ESC:return
SETUP:Enter the setting interface；
FILE:Enter the file management interface |
Product features:
1) Wavelength:
single mode:1310/1550/1490/1625/1650
Multimode:850/1300
2)Measuring range:100m~240km
3)Touch screen
4)Data format: Sor format
5)Integration capabilities:Power meter,Light source,VFL,Insertion loss tester,OTDR,Event map,FDO.
6)Keyboard input, edit save file name and line number
7)Support user upgrade
8)The 5.6-inch TFT screen, 640*480 pixels, is clearly visible in the outdoor sunlight
9)Two 7.4v /2500mAh lithium batteries are used, which can be fully charged for more than 8 hours
10)Convenient screenshot function, instrument under any interface can be quickly screenshot

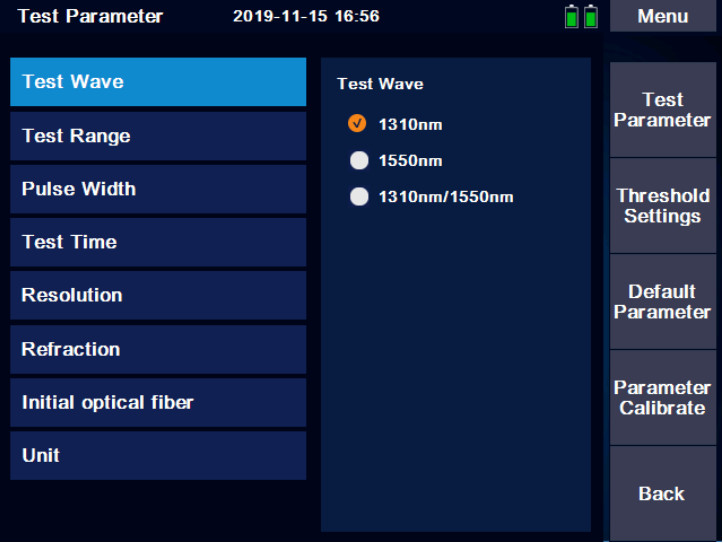

Wavelength Test model :
1310nm,1550nm(Optional:1490nm,1625nm, 1650nm online test and 850nm/1300nmmultimode) Measuring

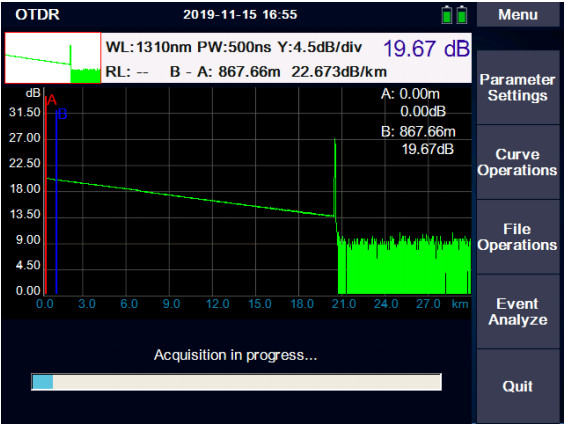

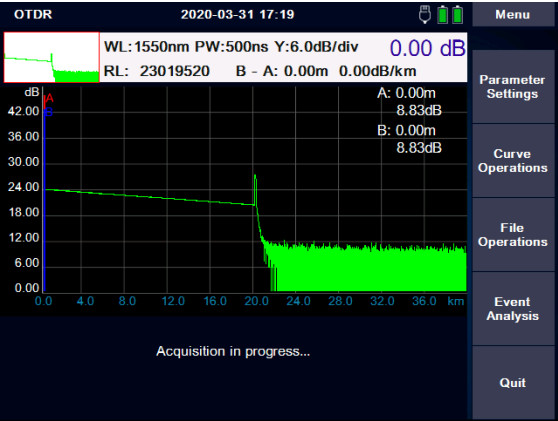

Parameter settings->Test time->Average mode； press【REAL/AVG】key enter the real-time
measurement mode,The current circuit is measured in real time, and the measurement parameters
cannot be modified in the measurement mode. If the parameters need to be modified, the test needs
to be stopped first. Event analysis will not be conducted during the real-time test, and event
analysis will only be conducted after the test is stopped.

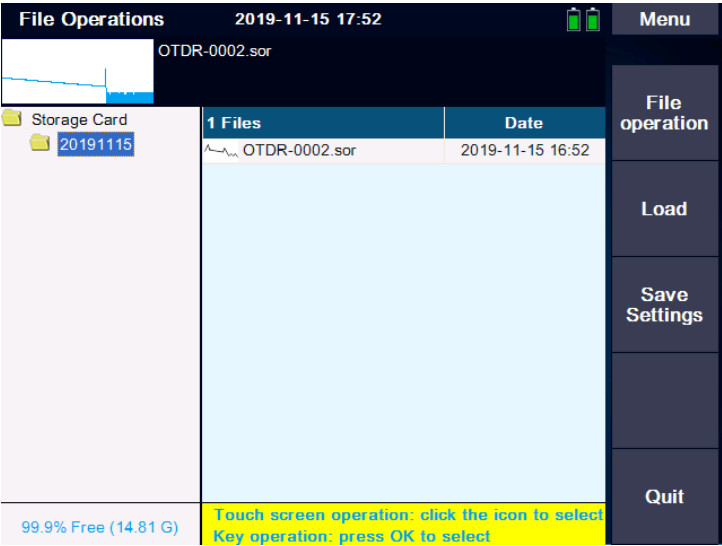

File Storage Mode

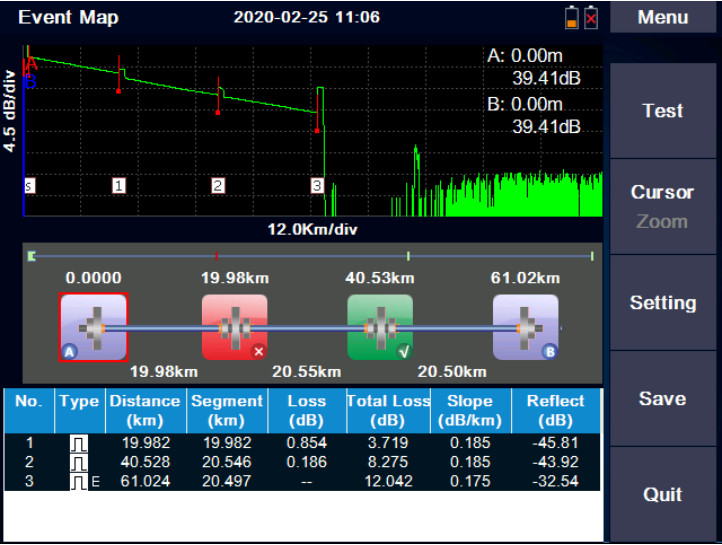

Event map

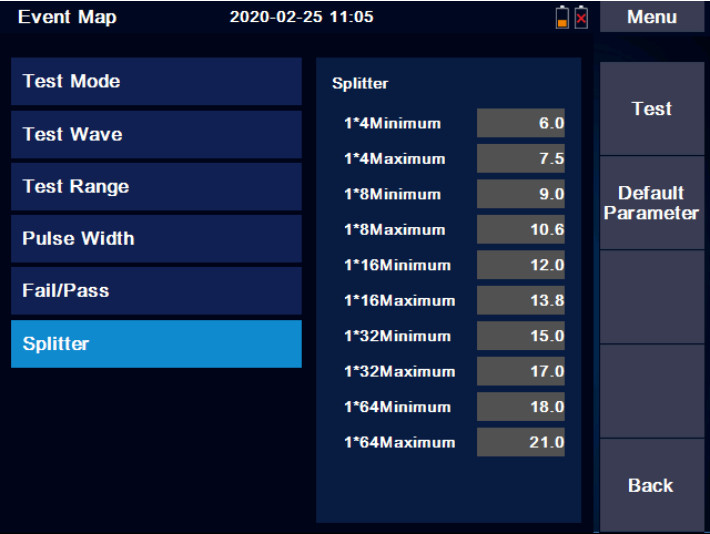

Splitter loss Settings

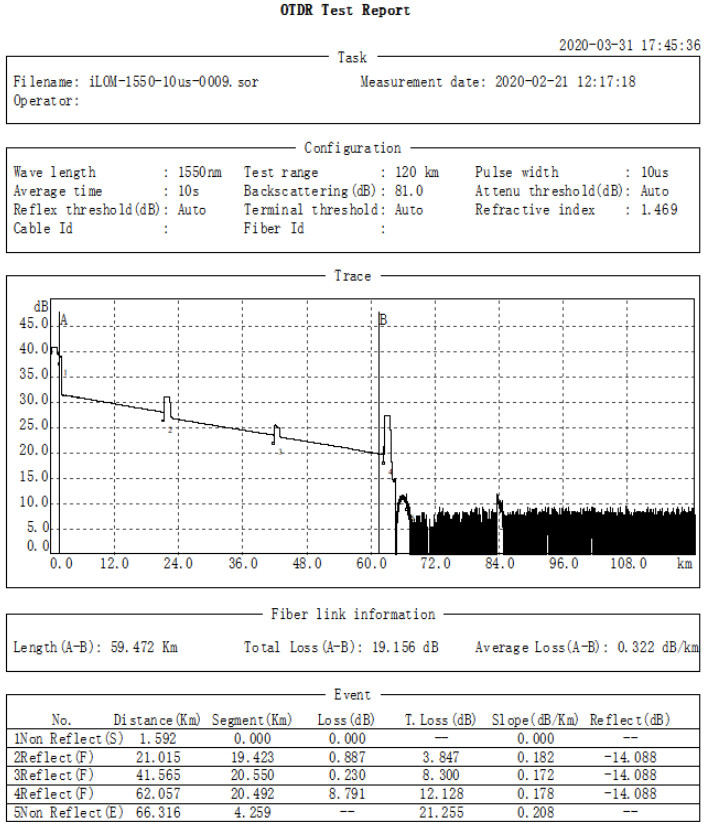

Computer software

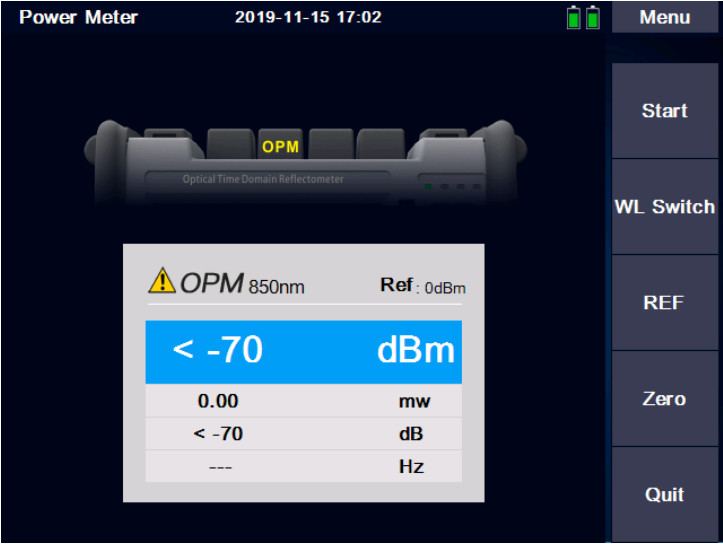

VFL and OPM Mode
